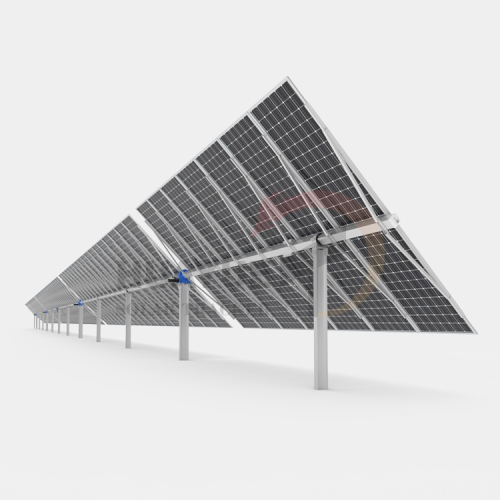

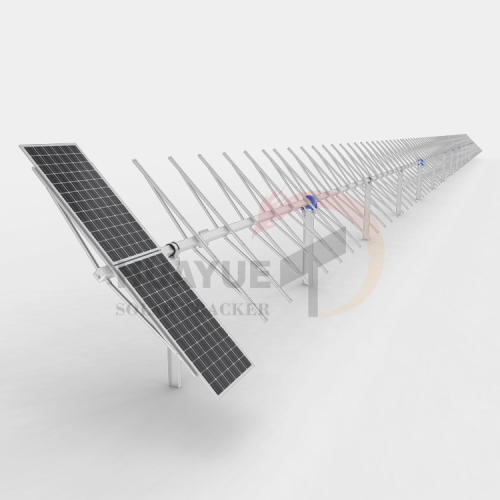

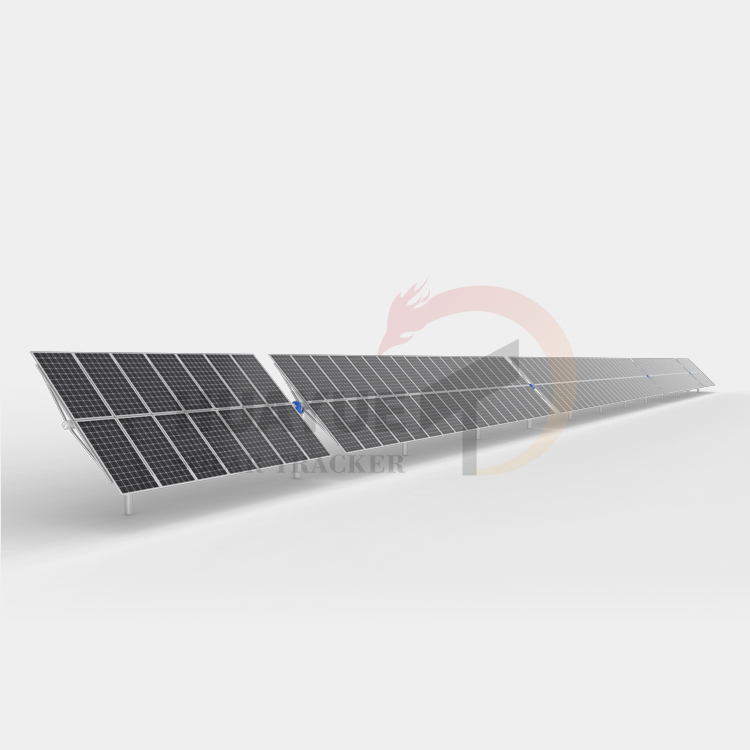

Great Wall Series B

Description
Description





   MECHANICAL PARAMETERS

   Main Material

  Q235B  /  Q355B  /  ZAM(S440/S550)

   Fastener Material

   304 stainless steel

   Warranty

   Whole machine 5 years

   (Except for man-made damage and force majeure)

   Protection Wind Speed

   20 m/s

   Survival Wind Speed

   37~50m/s (ASCE7-10, other wind speeds can be
   customized)

   Snow Load

   0.8~1.1KN/㎡

   Drive Device

   Slewing drive

   Drive Type

   Multi-point drive

   Azimuth Tracking Range (°)

   -60°~+60° (Customizable)



   CONTROLLER PARAMETERS

   Control Algorithm

   Astronomical algorithm   intelligent tracking technology

   Communication Protocol

   RS485

   Communication Type

   Wired / Wireless

   Protection Level

   IP65

   Wind Protection

   Have

   Night Return Mode

   Have

   Backtracking Algorithm

   Have

   Rotation Position Protection Mode

   Sensor protection + Software protection

   Tracking Range (°)

   ≤1°

    Working Temperature (℃)

   Default Configuration -30℃~+70℃  (Customizable)

    Flat at Night

   Have

    Heavy Rain Cleaning Mode

   Optional

    Automatic Snow Removal

   Optional


    APPLICABLE TERRAIN

According to the longitude, latitude, altitude and time of the project site, the program automatically calculates the sun's running track at any time and the azimuth and altitude angle of the location, and adjusts the tracking angle once every other period of time, so that the PV module is always aligned with the current sun's position, while the tracking system is fixed for the rest of the time.



   SCADA

Tracker Monitoring & Alarm + System Diagnosis + Intelligent Control
AI intelligent control system, asymmetrical backtracking algorithm and diffuse reflection tracking algorithm and smarter gale protection algorithm can be adopted according to real-time weather and site conditions.
- Remote data management

- Data analysis
- Remote data monitoring




   SYSTEM MODE

Lower Torsional Fluttering
- Higher Critical Wind Speed
- Higher Power Density
-
Lower Failure Rate



Maximum Wind Resistance Stability

Multi-drive structure can shorten the distance of torque transmission, effectively improve the transmission efficiency of force, adapt to various strong wind conditions to ensure a safer structure and a more reliable wind speed resistance performance and higher tracking accuracy.




Automatic Rain and Snow Cleaning Mode

Incorporate smart cleaning algorithm to run optimal solar module cleaning solutions in multiple weather patterns.




   LONG WARRANTY PERIOD
The whole machine for 5 years,steel structure for 10 years. (Except for man-made damage and force majeure)
