MECHANICAL PARAMETERS
|
Main Material |
Q235B/Q355B/ZAM |
|
Galvanizing Thickness |
＞85um |
|
Fastener Material |
304 stainless steel |
|
Warranty |
Whole machine 5 years |
|
Protection Wind Speed |
17 m/s |
|
Survival Wind Speed |
37～50m/s (ASCE7-10, other wind speeds can be |
|
Snow Load |
1.6KN/㎡ |
|
Basic Form |
Static Tube Pile/Concrete Pile/Integrated Steel Pile |
|
Drive Device |
X axis slewing drive *1 + Y axis slewing drive *4 |
|
Azimuth Tracking Range (°) |
Default -135°～+135° / ( -170°～+170° ) |
|
Altitude Tracking Range (°) |
0～60°/ ( 0～72° Customizable) |
CONTROLLER PARAMETERS
|
Controller Type |
MCU |
|
|
Control Algorithm |
Astronomical Algorithm + Intelligent Tracking Technology + Synchronous drive of multiple drives |
|
|
Communication Protocol |
RS485 |
|
|
Gale Protection |
Have |
|
|
Night Return Mode |
Have |
|
|
Backtracking Algorithm |
Have |
|
|
Rotation Position Protection Mode |
Sensor protection + Software protection |
|
|
X Axis Tracking Range (°) |
-120°～+120° / -135°～+135° (customizable) |
|
|
Y Axis Tracking Range (°) |
0~60° (customizable) |
|
|
Tracking Accuracy (°) |
≤1° |
|
|
Working Temperature (℃) |
Conventional default configuration -30℃～ 70℃ (Customizable) |
|
|
Flat at Night |
Have |
|
|
Automatic Snow Removal |
Optional |
|
|
Protection Level |
IP65 |
|
APPLICABLE TERRAIN
SCADA
Tracker Monitoring & Alarm + System Diagnosis + Intelligent Control
AI intelligent control system, asymmetrical backtracking algorithm and diffuse reflection tracking algorithm and smarter gale protection algorithm can be adopted according to real-time weather and site conditions.
- Data management and analysis
- Remote operation monitoring
POWER GENERATION INCREASE

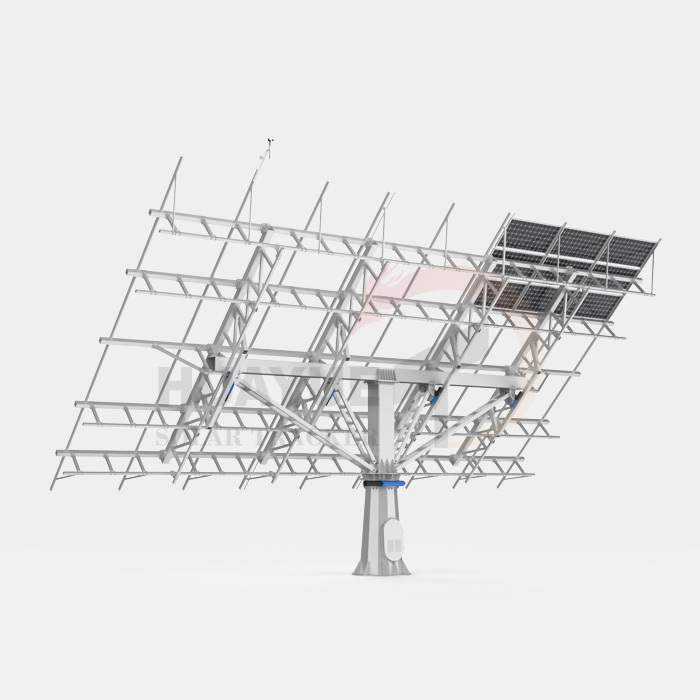

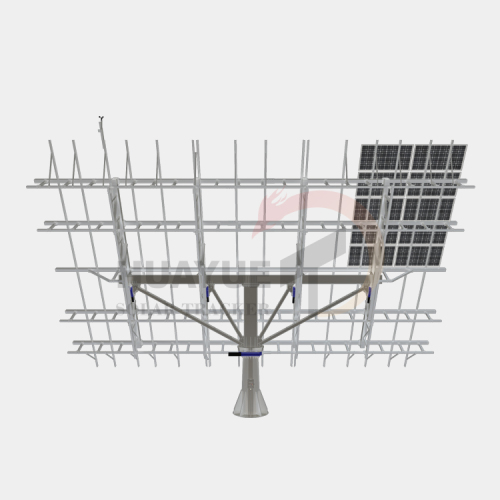

The dual axis solar tracker can keep the solar panel in the best direction and maximize the use of the power of the photovoltaic panel.
LONG WARRANTY PERIOD
The whole machine for 5 years,steel structure for 10 years. (Except for man-made damage and force majeure)
